S25-SE-A25 – Ultraschall-Füllstandssensor: Stromauflösung berechnen
Aufgabenstellung

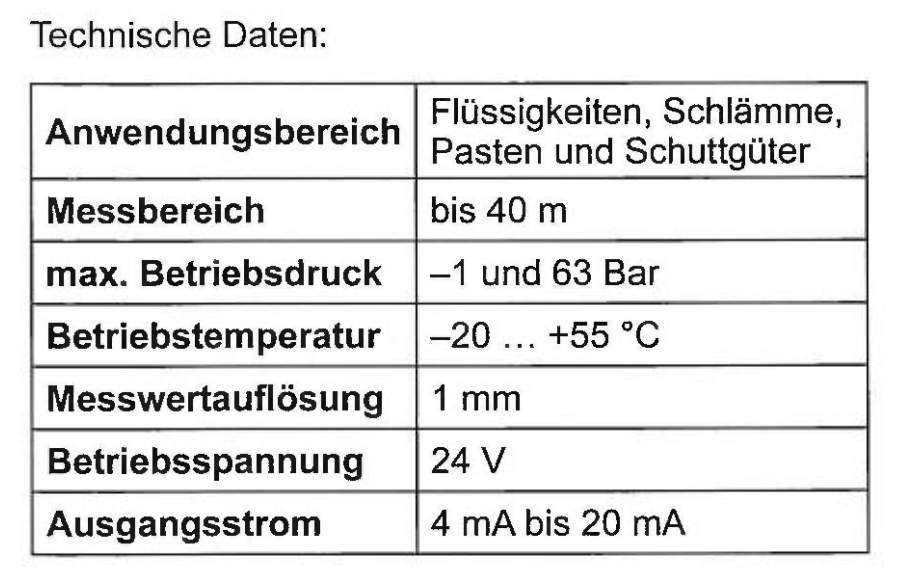

Als Füllstandssensor wird ein Ultraschall-Sensor mit den folgenden
In welcher Auswahlantwort ist die Auflösung (in $\mu A/mm$) dieses Füllstandssensors richtig wiedergegeben?
1. 0,05 $\mu A/mm$
2. 0,4 $\mu A/mm$
3. 0,5 $\mu A/mm$
4. 4 $\mu A/mm$
5. 5 m$\mu A/mm$
In welcher Auswahlantwort ist die Auflösung (in $\mu A/mm$) dieses Füllstandssensors richtig wiedergegeben?
1. 0,05 $\mu A/mm$
2. 0,4 $\mu A/mm$
3. 0,5 $\mu A/mm$
4. 4 $\mu A/mm$
5. 5 m$\mu A/mm$
Musterlösung
Richtige Antwort: **2**
$$\text{Auflösung} = \frac{I_{max} - I_{min}}{\text{Messbereich}} = \frac{(20 - 4)\,\text{mA}}{40\,\text{m}} = \frac{16\,\text{mA}}{40.000\,\text{mm}}$$
$$= 0{,}0004\,\text{mA/mm} = 0{,}4\,\mu\text{A/mm}$$
$$\text{Auflösung} = \frac{I_{max} - I_{min}}{\text{Messbereich}} = \frac{(20 - 4)\,\text{mA}}{40\,\text{m}} = \frac{16\,\text{mA}}{40.000\,\text{mm}}$$
$$= 0{,}0004\,\text{mA/mm} = 0{,}4\,\mu\text{A/mm}$$
